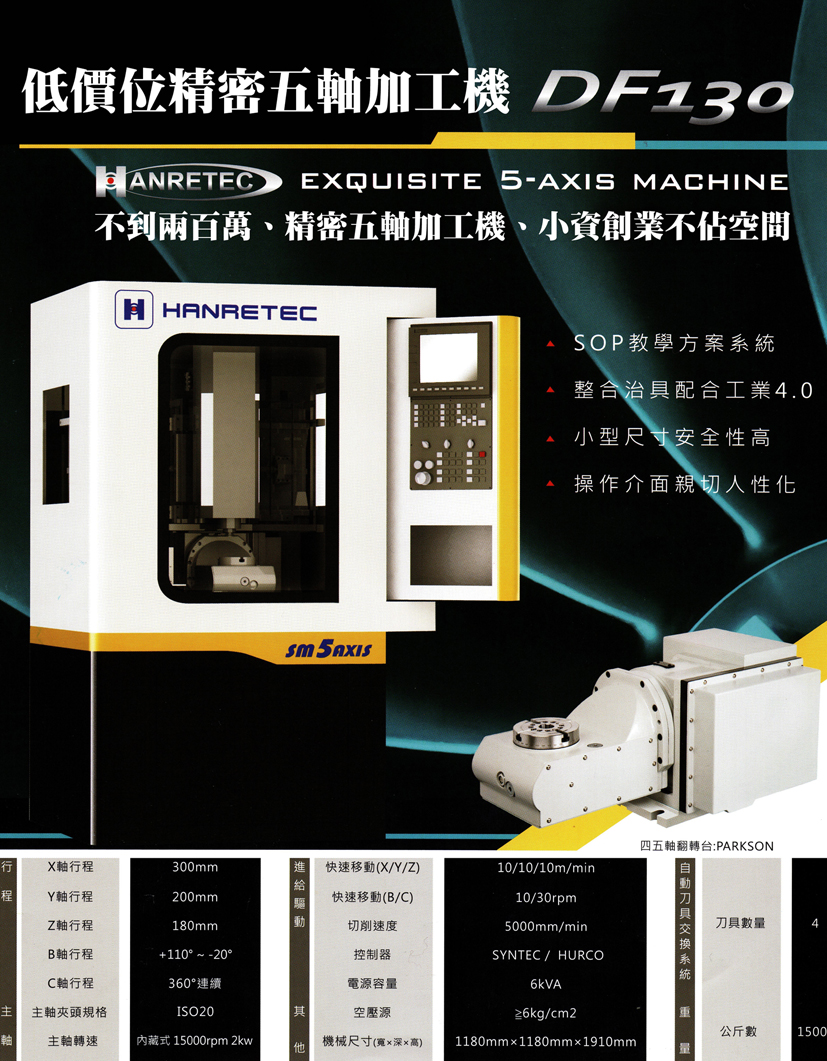

• Description

規格

Table

 Table size  mm  Ø130
 T slot     10T
 Max. load  KG  25



Travel

 X axis  mm  360
 Y axis  mm  175
 Z axis  mm   245
 Spindle nose to table  mm  -5.5~239.5
 Spindle center to column  mm  240.5



Spindle

Spindle taper    ISO20
Max. speed  rpm  15,000
 Spindle base speed (Cont.)  rpm  20,000
Output power (Cont.)  kw  2
 Output torque (Cont.)  Nm  0.95
 Housing diameter  mm  Ø 80
 Transmission    Built in
 Tool release    Air



 B axis

 Travel  deg.  -20° ~ +110°
 Clamping  force  kgf-m 30
 Precision of positioning  sec  60
 Precision of repeatability  sec  8
 Rotation speed  rpm  20



C axis (Table)

 Travel  deg.  ±360°
 Clamping force  kgf-m   10
 Precision of positioning sec 60
 Precision of repeatability sec 6
 Rotation speed rpm 33.3



 Axis servo Motor power

 X axis   w  600
 Y axis  w  750
 Z axis  w  750
 B axis  w  1300
 C axis  w  750



 Axes feed

 X/Y/Z rapid M/min 10/10/10
 X/Y/Z cutting M/min  5



Automatic tool change system

 Tool change mode    Row type
 Tool hold type ISO20
 Number of tool 4
 ATC time (T-T)  sec  20
 ATC time (C-C)  sec  23
 Max.tool diameter  mm  Ø 50
 Max. tool length  mm  55
 Max. tool weight  kg  1



Pneumatic system

 System pressure  kg/cm2   6~7


Power capacity

 Transformer power  KVA  6


Machine weight

 weight  kg 1500


Accessories

    St.  Op.
 Automatic tool change unit   O
 Air blow for tool changer   O
 Air blow for cutting   O
 Air purge for spindle   O
 Oil cooler system     O
 Coolant system for cutting   O
 Flush coolant for chip    X
 Screw conveyor    X    X
 Full guarding   O
 Heat exchanger    X    X
 Water gun    X    X
 Air gun   O
 Work ligh   O
 3 color alarm light   O
 Pneumatic system   O
 Rotary table system   O
 Separate MPG   O
 Chain conveyor system    X    X
 M30 power off      O
 A.T.L.M.      O
 Touch probe    X    X
 Coolant through spindle    X    X
 Through hole drill hits    X    X
 Rigid tapping    X    X
 Extension column    X    X
 Oil mist collator    X    X
