• Description

Key Features
• Robust circular-section Venturi tube for long
• Multiple manometers for direct measurement
of static heads
• Transparent manometer tubes for a highly
visual display of the pressure distribution
along the Venturi
• Compact and simple to operate
• Works with TecQuipment’s Hydraulic Bench
for easy installation
Learning Outcomes
Comprehensive study of a Venturi meter and
Bernoulli’s Theorem, including:

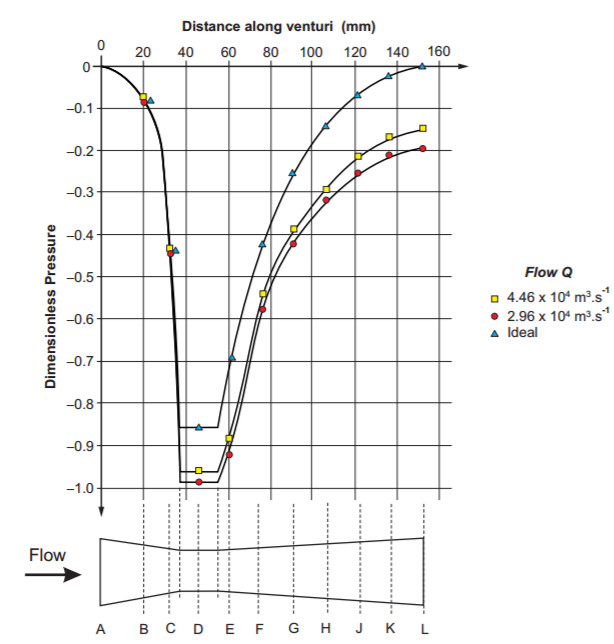

• Direct measurement of the static head
distribution along a Venturi tube
• Comparison of experimental results with
theoretical predictions
• Measurement of the meter coefficient of
discharge at various flow rates
Key Specifications
• Eleven pressure tappings
• Downstream flow control valve
